KNECHT/MAHLE  0349000
(034 90 00)

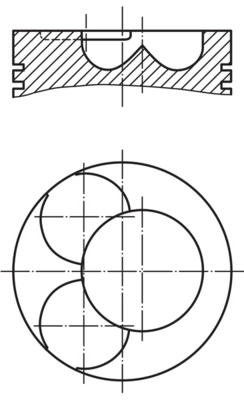

Piston

Цена

Bolt Head Diameter [mm]	26,0
Bolt Length [mm]	68,0
Component Number	3. DSF 3.0 Cr
Compression Height [mm]	45,75
Cylinder Bore [mm]	81,01
Fitting Position	for cylinder 1-2
Length [mm]	69,8
Machined	with cut-out for oil jet
Net Weight [g]	835
Packaging height [cm]	12,80
Packaging length [cm]	9,5
Packaging width [cm]	9,50
Piston Clearance [mm]	0,05
Production Number	81 L 33
Recess Depth 1 [mm]	17,2
Recess Diameter [mm]	39,6
Supplementary Article/Info 2	without cooling duct
Surface	Coated
Top Land Height [mm]	9
Valve Pocket Depth 1 [mm]	1,35

Аналоги (кросс-номера)
AUDI	046107065G
AUDI	9125674
AUDI	046107103M
AUDI	046107103AT
AUDI	046107103AH
AUDI	046107065AK
AUDI	046107065AB
AUDI	9186557
AUDI	9186659
CUPRA	046107065AB
CUPRA	046107065AK
CUPRA	046107065G
CUPRA	9186557
CUPRA	046107103AH
CUPRA	046107103AT
CUPRA	9186659
CUPRA	046107103M
CUPRA	9125674
KOLBENSCHMIDT	94429700
KOLBENSCHMIDT	94429600
NÜRAL	8750150020
VW	9125674
VW	9186557
VW	9186659
VW	046107103M
VW	046107103AT
VW	046107103AH
VW	046107065G
VW	046107065AK
VW	046107065AB
